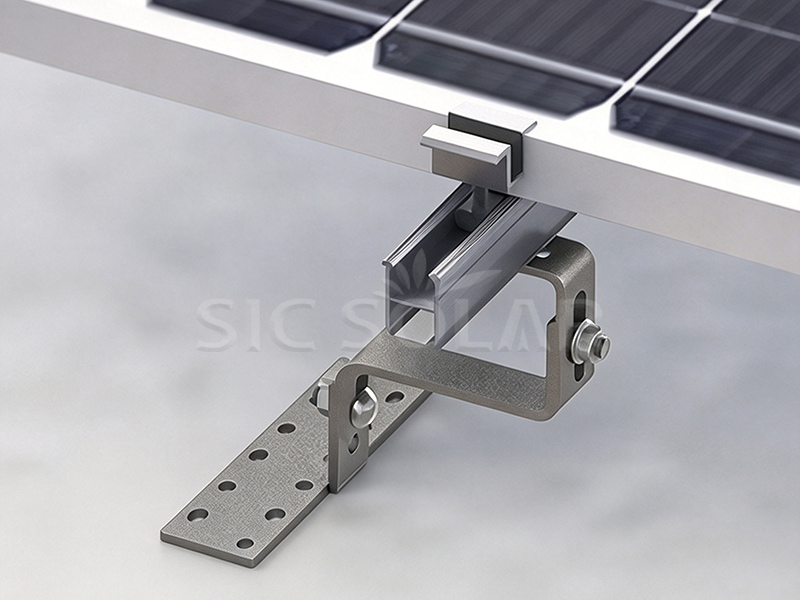

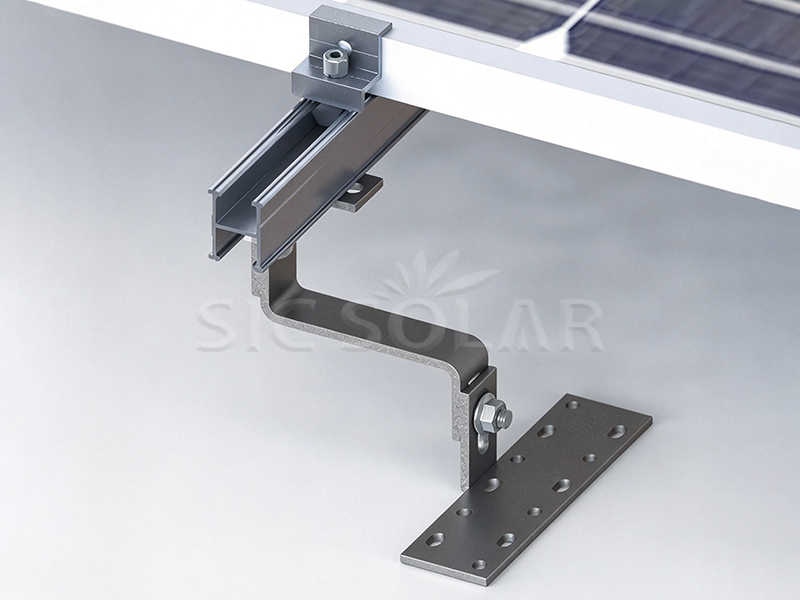

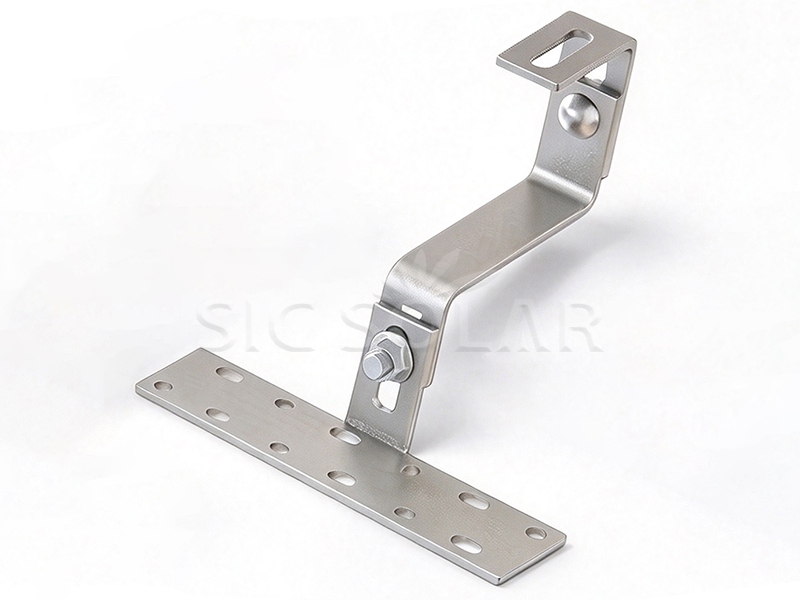

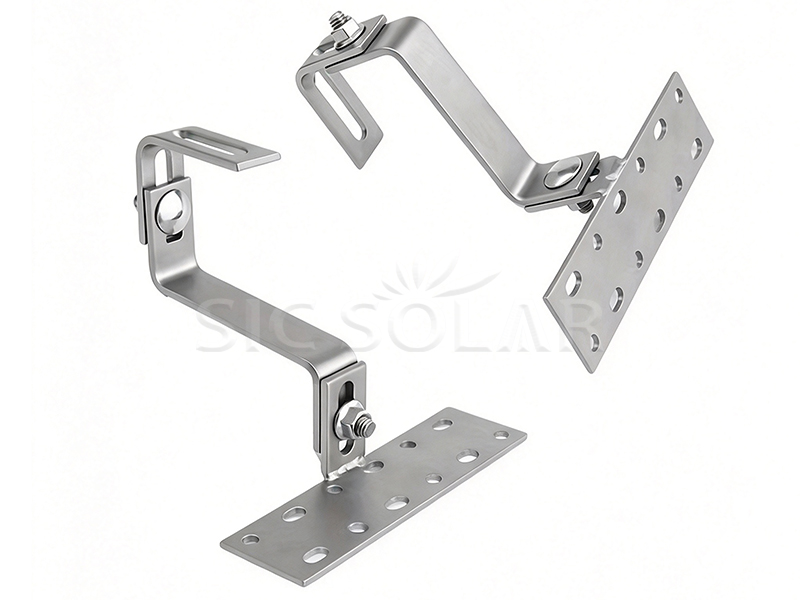

Double Adjustable Tile Roof Hook

Click here to learn more hooks

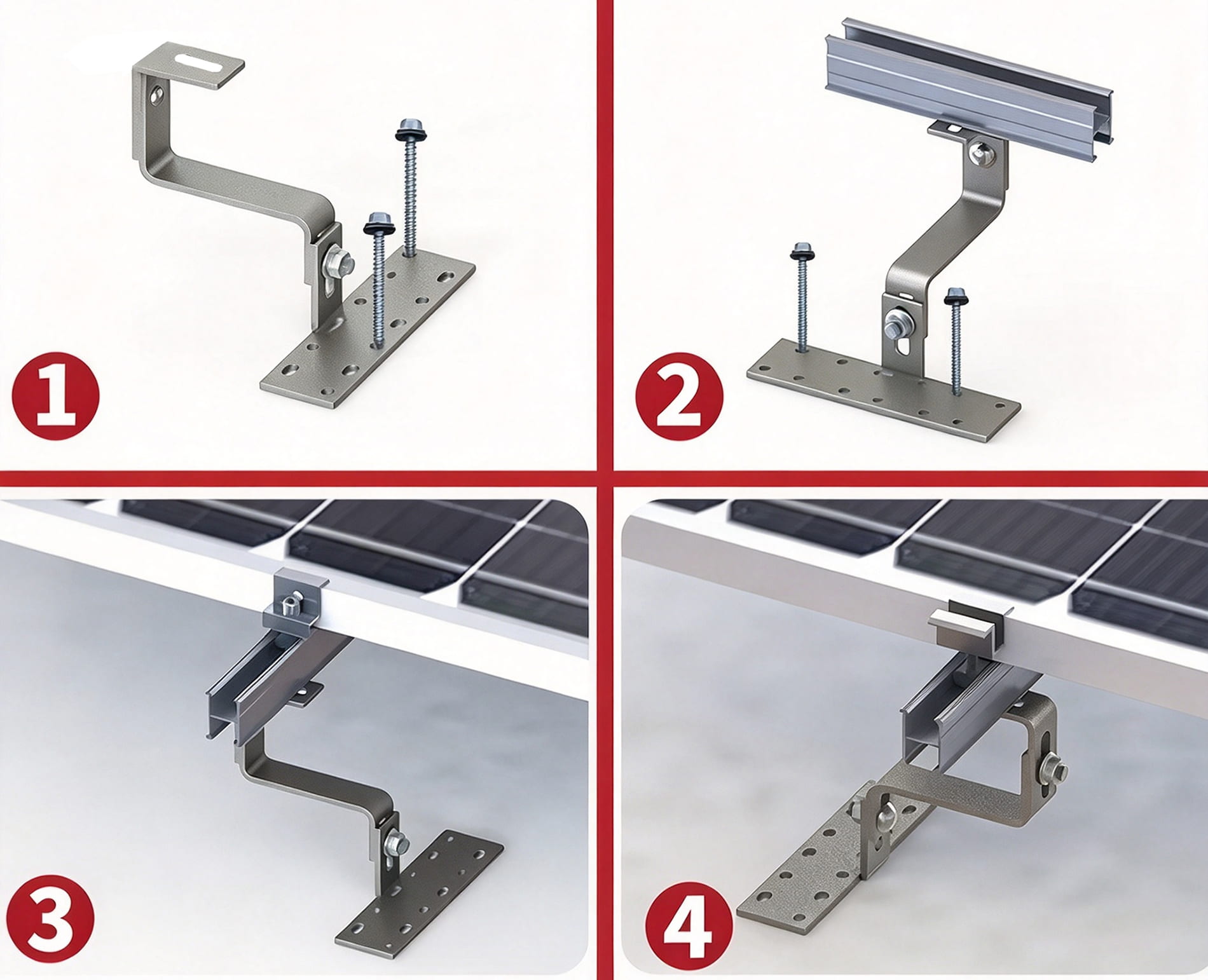

1️⃣ Check Roof Compatibility: Identify the tile type, roof structure, and available mounting space to confirm the hook is suitable.

2️⃣ Mark the Positions: Follow the approved mounting layout and locate suitable rafters or other structural members.

3️⃣ Access the Roof Structure: Carefully lift or remove the necessary tiles to reach the fixing points without damaging the roof covering.

4️⃣ Secure the Hook: Fasten the hook to the structural member using the specified hardware. Do not rely on the tiles alone to support the mounting loads.

5️⃣ Adjust the Height: Use the adjustment features to achieve the correct height and alignment while maintaining adequate clearance from the tiles.

6️⃣ Install the Rails: Attach compatible mounting rails and check that they are straight and level.

7️⃣ Inspect the Installation: Check all fasteners, hook stability, tile clearance, and waterproofing details before installing the panels.

Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

☆ Dual-Adjustment Design – Allows flexible height and position adjustments for compatible tiled roofs.

☆ Flexible Installation – Helps accommodate variations in tile profiles and roof layouts.

☆ Secure Structural Fixing – Connects mounting rails to suitable roof structural members when correctly installed.

☆ Easy Rail Connection – Provides a fixing point for compatible solar rails and accessories.

Related Certificate

☆ Our CE Certificate for solar tile hook roof mount system

☆ Our SGS Certificate for hook material -- SUS304

☆ Our SGS Certificate for screw material -- SUS304

Q1: Is this hook compatible with all types of roof tiles?

No. Compatibility depends on the tile profile, roof structure, hook dimensions, and available clearance. Check the fit before installation.

Q2: Does the roof hook need to be fixed to a rafter?

It must be secured to a suitable structural member according to the mounting system design. Roof tiles alone are not suitable structural fixing points.

Q3: Can this hook help prevent roof tile damage?

Its adjustable design helps maintain clearance between the hook and tiles, reducing unwanted contact. Correct positioning and installation are still essential.

Q4: Can installing a tile roof hook affect roof waterproofing?

Yes, if the roof covering or waterproofing details are disturbed. Follow the appropriate installation method and properly restore any affected components.

Q5: Can this hook be used with different solar mounting rails?

It can be used with rails that match its connection interface and fastening requirements. Confirm compatibility before ordering.
